3D view menu

The 3D view menu holds various commands to adjust the visible view port of a 3D data view. Commands are specifically designed to zoom, scale, shift, rotate and scroll analytical 3D data to fit the user requirements for printing or further evaluation.

Why is the menu missing sometimes?

The 3D view menu is only available if the current active object is a 3D data object.

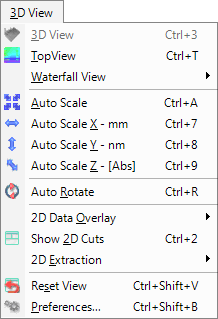

3D view menu contents

The 3D View menu provides the following commands:

• Top View

• 3D View

• Waterfall View

• 2D Data Overlay

• Auto Scale

• Auto Scale X

• Auto Scale Y

• Auto Scale Z

• Auto Rotate

• Show 2D Cuts

• 2D Extraction

• Reset View

• Preferences...

Quick access to 3D preferences!

The 3D Preferences dialog is also available via the context menu on a data view. Just click the Right Mouse button over a 3D data view to enter the context menu and select the Preferences... command.
