Data Access Role Manager

The Data Access Role Manager is used to edit the access role hierarchy and to manage all data access roles in the application. It is typically used to make modifications to the access roles after the initial access role setup by the Data Access Control Wizard. The access role manager is accessible through the command "Manage Data Access Roles" in the Security menu, but will only be available after the initial data access control setup.

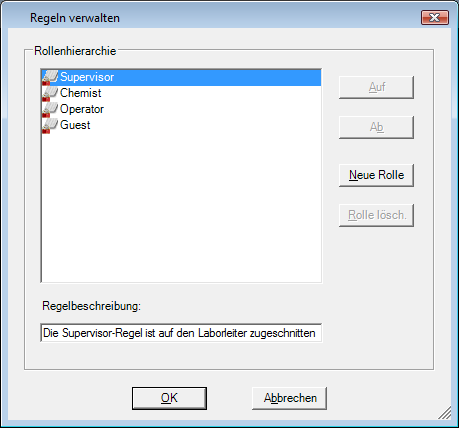

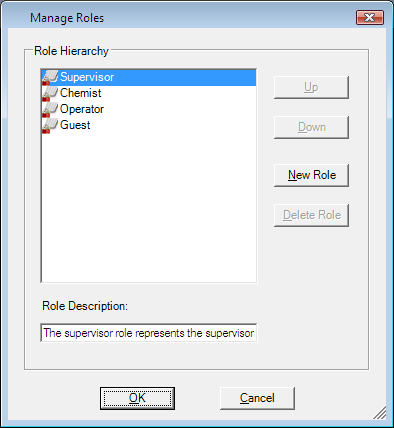

The dialog looks like this:

Data Access Role Manager Contents​

The Data Access Role Manager shows the role hierarchy and controls to modify/add/delete roles.

Role Hierarchy​

The dialog shows all available roles and displays them in the current hierarchy. The role hierarchy may be modified using the up/down buttons and roles may be added or removed:

  • Button Up:
    Moves the selected role up one level in the hierarchy.

  • Button Down:
    Moves the selected role down one level in the hierarchy.

  • Button New Role:
    Adds a new role to the hierarchy. The user needs to enter the new role name:

    The access rules of the new role need to be configured subsequently using the command "Edit Data Access Roles" in the Security menu.

  • Button Delete Role:
    Deletes the currently selected role.

Role Description​

Shows the description string of the selected role. The role description may be modified by simply editing the description text.
