Peak Evaluation

Peak Evaluation is applied to show additional user defined calculation results together with the peak table of a data object. Calculation results are derived from any peak data of a spectrum. Please refer to the "Peak Evaluation" section in the chapter "Mathematics" for details.

Peak Evaluation is configured as follows:

Peak Evaluation Menu Command​

To add new peak evaluations or edit existing peak evaluation methods using the menu command, please follow the instructions below:

  1. Activate the 2D data view with desired objects to be evaluated.

  2. From the Mathematics menu, select the Peak Evaluation command.

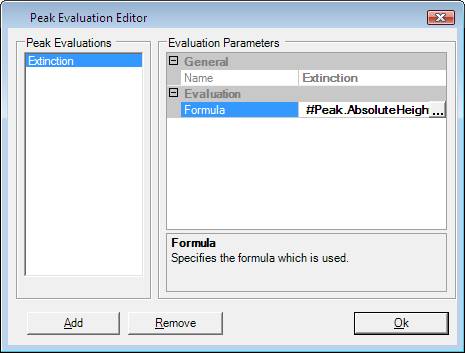

  3. In the Peak evaluation dialog, click the Add button to add a new evaluation method.
    Alternatively, select an existing evaluation method from the list on the left.

  4. Modify the formula by clicking the button.

  5. Click the OK button.

Peak Evaluation Keyboard Shortcut​

None.
